Product – Progressive Cavity Pump
Progressive Cavity Pump

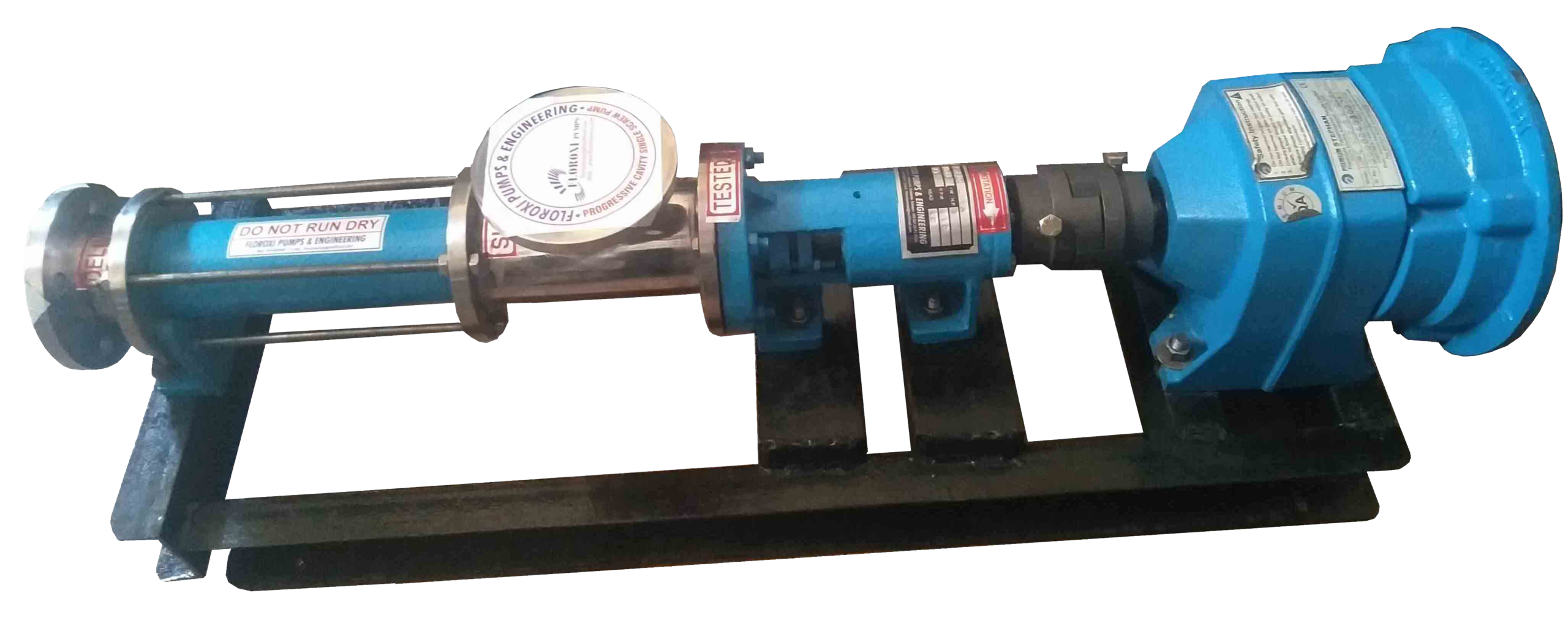

Progressive Cavity Pumps
| Brand | Floroxi Pumps |
| Maximum Capacity | 50 M3/Hr |
| Maximum Temperature | Up to 150 Deg C |
| Solids Handling Capacity | up to 7-10% |
| Maximum Solid Size | up to 25mm |
| Solids Consistency | as high as 90% |
| Maximum Pressure | 24 Kg/cm2 |
Brewery and distillery, Ceramics and Refractories , Chemicals and Process Construction, Cosmetics and Toiletries, edible, Oil, effluent
And sewage treatment, Electronics, Engineering, Fertilizer ,marine, mining man-made, Fibre, oil exploration, paint and Varnish, Paper, Pulp and Cellulose, Petrochemical and Refinery, Printing Ink ,Soap and Detergent Sugar Etc.
Field of application:
Acidic and Alkaline Slurry , Alum, Bentonite Slurry , Black Liquor, casein Slurry , Clay Slurry, Coating Mix, Detergent Slurry, Electroplating Solution, Emulsions, Ferrite Slurry, fuel Oil Sludge, Glue, Grout Mix, Lube Oil, Malasses, Paint, Paper Pulp, Printeng
Ink, Resins, Sewage Sludge, soap stock, sodium silicate, sulphited sugar Juice, Varnish, vegitebale Oil, gum, sludge, viscose, yeast, Petroleum Jelly Etc.
Features
Torsion free metol – bonded stator for increased stator life, higher efficiency and per stage pressure Double-seated universal joints for smoother power transmission and longer service life of critical components .
Worke on the uniqe Progressive Cavity Principale. Inherently non-clogging and capable of handing a high percentage of solids.
Positive displacement, inherently self- priming and capable of handing enterapped gases.
Low internal velocity of fluid within the pump ensures low shear and minimizes wear due to erosion.
Low NPSH requirement results in higher suction lift up to 8.4 meters of water column.
Continuous pulsation – free flow with minimum turbulence. Flow rate propotional to the pump speed.
Capable of developing high pressure 48 Bar – even at a low pump speed.
Handles only liquid from water to abrasive slurry and froth to highly viscous media.
KNOW MORE
Capacity: 100M3/HR, Pressure – 24 Bar, Temperature – 1500C , Viscosity – 1,00,000 CST
Field Of Application: Ceramic slurry and other Abrasive and Corrosive Slurries, Massecuite, Effluents, Mineral Oils, Maize Starch Slurry, Viscose, Paints, vegetables Oil & Sludge etc.
Features: Cast Iron Contraction With Various Metal of rotating parts like Alloly Steel, Tool Steel, SS 304 and SS 316 material of construction. Other Various Option of super Alloy Like Alloy 20, Hastelloy B, Titanium are available for highly corrosive applications. Shaft sealing ensured by soft gland Packing/mechanical seal. Torsion free metal banded stator and double sealed universal joints as pin& bush Joint or special designs like cardon joints as per customer requirement for longer service life and improved efficiency results in trouble free performance of the pump

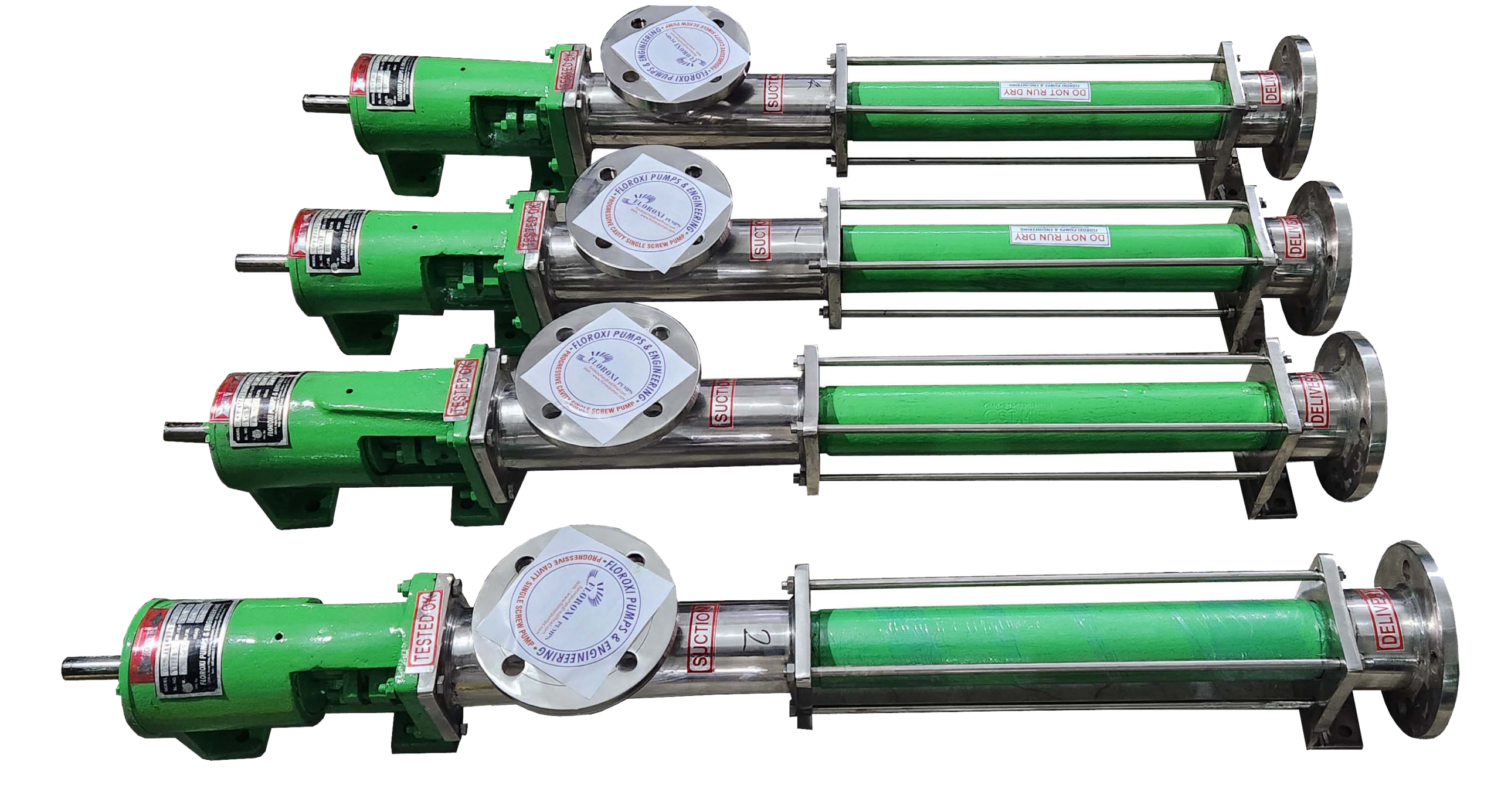

Positive Displacement Pumps
| Brand | Floroxi Pumps |
| Maximum Capacity | 50 M3/Hr |
| Maximum Temperature | Up to 150 Deg C |
| Viscosity | Up to 100,000 cst |
| Maximum Pressure | 24 Kg/cm2 |
Brewery and distillery, Ceramics and Refractories , Chemicals and Process Construction, Cosmetics and Toiletries, edible, Oil, effluent
And sewage treatment, Electronics, Engineering, Fertilizer ,marine, mining man-made, Fibre, oil exploration, paint and Varnish, Paper, Pulp and Cellulose, Petrochemical and Refinery, Printing Ink ,Soap and Detergent Sugar Etc.
Field of application:
Acidic and Alkaline Slurry , Alum, Bentonite Slurry , Black Liquor, casein Slurry , Clay Slurry, Coating Mix, Detergent Slurry, Electroplating Solution, Emulsions, Ferrite Slurry, fuel Oil Sludge, Glue, Grout Mix, Lube Oil, Malasses, Paint, Paper Pulp, Printeng
Ink, Resins, Sewage Sludge, soap stock, sodium silicate, sulphited sugar Juice, Varnish, vegitebale Oil, gum, sludge, viscose, yeast, Petroleum Jelly Etc.
Features
Torsion free metol – bonded stator for increased stator life, higher efficiency and per stage pressure Double-seated universal joints for smoother power transmission and longer service life of critical components .
Worke on the uniqe Progressive Cavity Principale. Inherently non-clogging and capable of handing a high percentage of solids.
Positive displacement, inherently self- priming and capable of handing enterapped gases.
Low internal velocity of fluid within the pump ensures low shear and minimizes wear due to erosion.
Low NPSH requirement results in higher suction lift up to 8.4 meters of water column.
Continuous pulsation – free flow with minimum turbulence. Flow rate propotional to the pump speed.
Capable of developing high pressure 48 Bar – even at a low pump speed.
Handles only liquid from water to abrasive slurry and froth to highly viscous media.
KNOW MORE
Capacity: 100M3/HR, Pressure – 24 Bar, Temperature – 1500C , Viscosity – 1,00,000 CST
Field Of Application: Ceramic slurry and other Abrasive and Corrosive Slurries, Massecuite, Effluents, Mineral Oils, Maize Starch Slurry, Viscose, Paints, vegetables Oil & Sludge etc.
Features: Cast Iron Contraction With Various Metal of rotating parts like Alloly Steel, Tool Steel, SS 304 and SS 316 material of construction. Other Various Option of super Alloy Like Alloy 20, Hastelloy B, Titanium are available for highly corrosive applications. Shaft sealing ensured by soft gland Packing/mechanical seal. Torsion free metal banded stator and double sealed universal joints as pin& bush Joint or special designs like cardon joints as per customer requirement for longer service life and improved efficiency results in trouble free performance of the pump

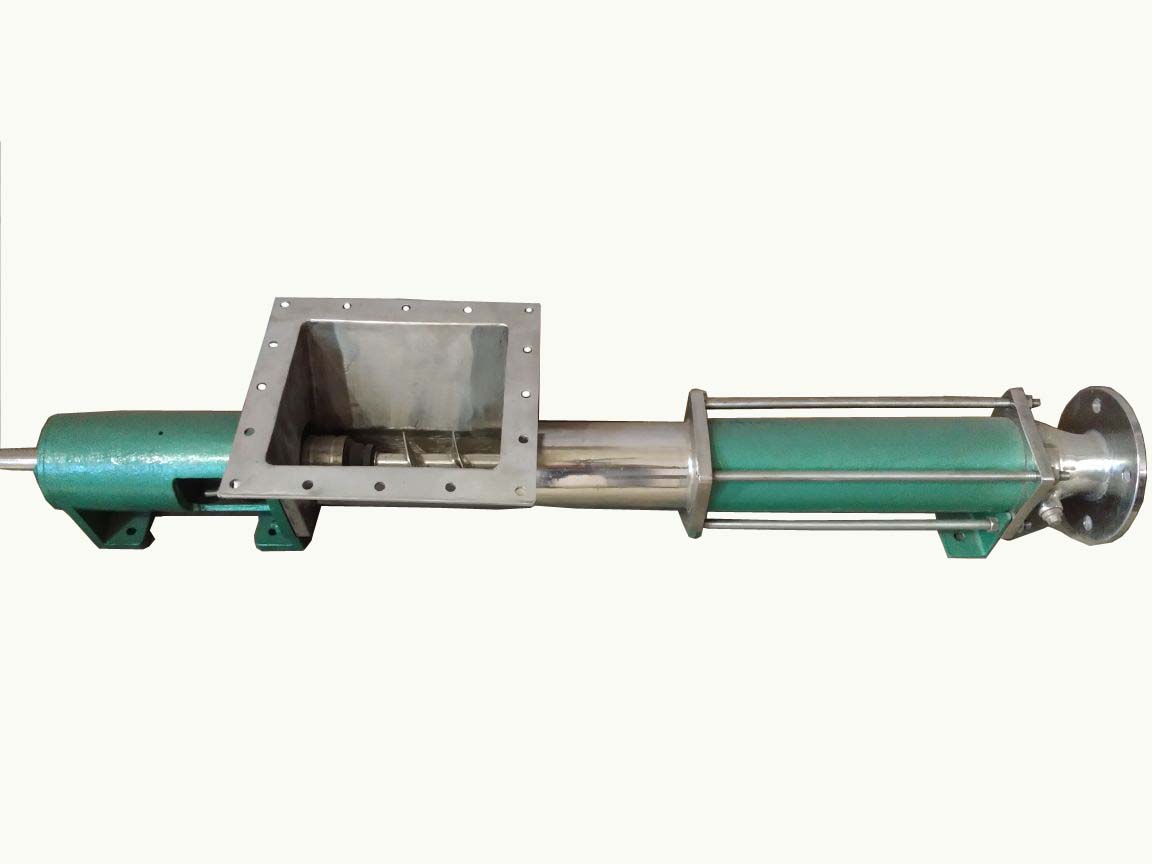

Hopper Type Screw Pumps
| Brand | Floroxi Pumps |
| Model | FPG |
| Temperature | 120 |
| Head | 200 |
| Viscosity | 100000 cst |
| Pressure | 24bar |
| Power Source | Electric |
| Capacity | 50000LPH |
| Speed | 500 |
| Voltage | 514 |
| Condition | New |
Grouting Pumps
